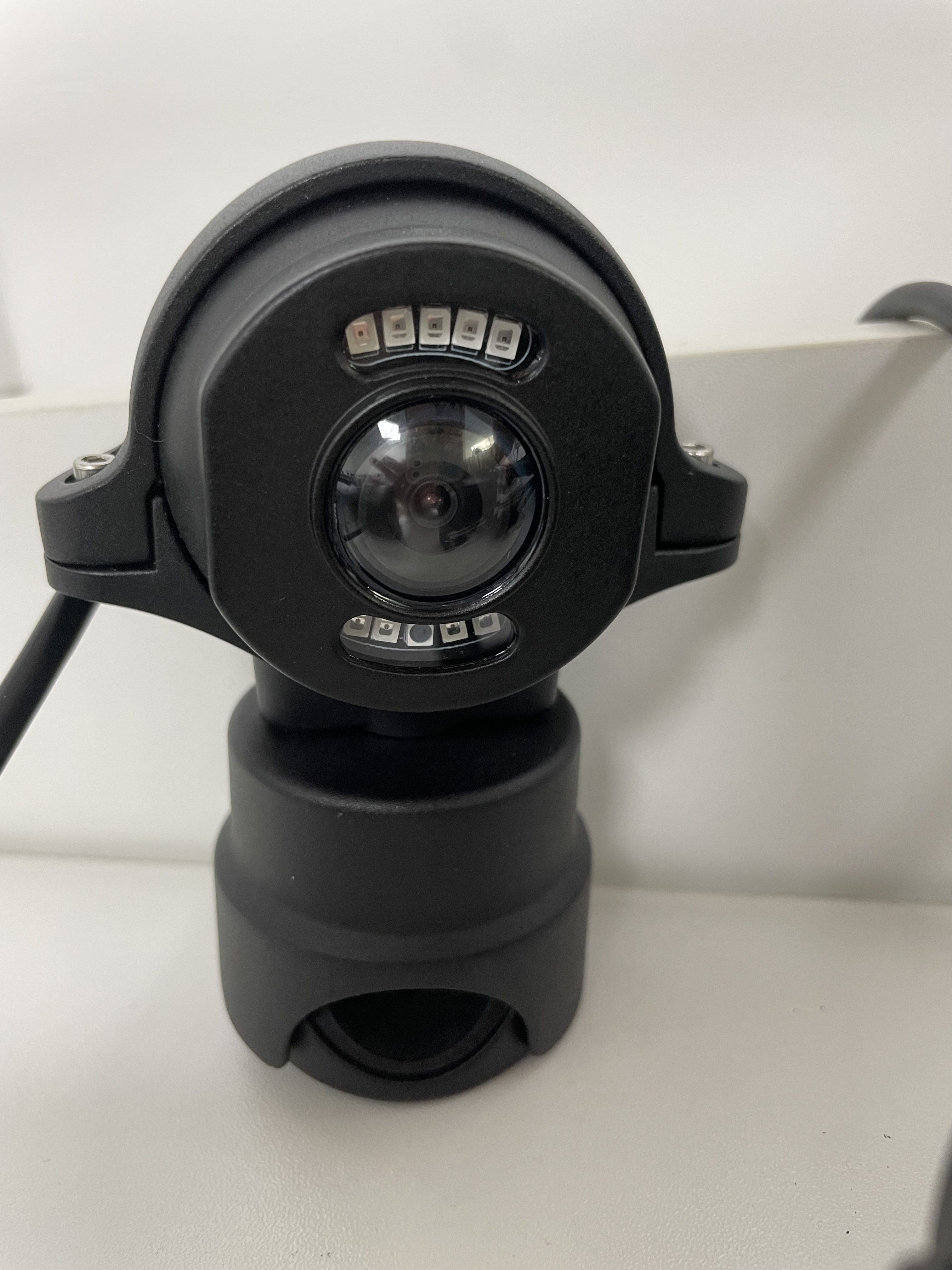

This AHD reversing camera with IR night vision is designed for commercial vehicles that need reliable rear, side or front visibility in daily operation. It supports 1080P AHD video output, infrared night vision, a waterproof metal housing and a 4-pin aviation connector for stable vehicle installation.
The camera can be used on trucks, buses, trailers, forklifts, agricultural vehicles and industrial equipment. It is suitable for reversing assistance, blind spot monitoring, loading area visibility and low-light vehicle monitoring.
Key Features
- 1080P AHD video output for clear vehicle monitoring.
- IR night vision for reversing and low-light operation.
- Waterproof metal housing for outdoor and commercial vehicle use.
- Wide viewing angle for rear or side blind spot coverage.
- 4-pin aviation connector for stable vehicle installation.
- Mirror / normal image option for flexible mounting positions.
- Guide line on / off selectable for different reversing applications.
Recommended Applications
Truck and Trailer Reversing
Installed at the rear of trucks or trailers, the camera helps drivers monitor loading docks, parking areas and reversing zones.
Bus and Coach Rear View Monitoring
For buses and passenger transport vehicles, the camera can support rear visibility when reversing, parking or maneuvering in depots.
Forklift and Industrial Vehicle Monitoring
Installed on forklifts or industrial vehicles, the camera helps operators view rear blind spots and nearby working areas.
Agricultural and Construction Equipment
The waterproof housing and night vision function make the camera suitable for machinery working in outdoor, dusty or low-light environments.
Technical Specifications
| Video output | AHD 1080P |
| Resolution | 1920 x 1080P |
| Lens | 2.8 mm |
| Viewing angle | 105 degree horizontal / 170 degree diagonal |
| Night vision | IR LEDs with IR cut |
| Housing | Metal housing |
| Waterproof rating | IP68 |
| Connector | 4-pin aviation connector |
| Power supply | DC 12V |
| Image mode | Mirror / normal image selectable |
| Guide line | On / off selectable |
Recommended System Combination
This reversing camera can be used with vehicle monitors, 4-channel monitor systems, MDVR fleet recording systems, wired backup camera kits and commercial vehicle safety camera solutions.
For buyers who are unsure which monitor, connector or cable length is suitable, Xinvisual can recommend a matching camera and monitor combination based on vehicle type and installation position.
Related Vehicle Safety Solutions
- Forklift Safety Camera Solution
- Fleet Camera Monitoring Solution
- Wireless Camera Systems
- Contact Xinvisual for a system recommendation
Why Choose Xinvisual
Xinvisual Electronics manufactures vehicle cameras, monitors, wireless camera systems, AI blind spot detection solutions, MDVR systems and vehicle display products for commercial vehicles, distributors and OEM projects.
We support OEM/ODM customization, product matching and engineering communication for commercial vehicle camera system projects.
Related Rear View Camera Options
For projects that require a higher waterproof rating for washing, rain or harsh outdoor use, you can also compare the Waterproof IP69K Reversing Camera.
If the vehicle needs rear obstacle distance warning in addition to camera visibility, the 7-inch Radar Camera Reversing System may be a better option for truck, bus and fleet retrofit projects.
Not sure whether the vehicle needs 100° or 170° coverage? Read our rear view camera angle comparison for guidance on image distortion, blind spot coverage and reversing distance judgment.
FAQ
Can this camera be used on trucks and trailers?
Yes. It can be installed as a rear view or reversing camera for trucks, trailers and other commercial vehicles.
Does this camera support night vision?
Yes. The camera includes IR LEDs and IR cut function for low-light monitoring.
Can it work with a vehicle monitor?
Yes. It can work with compatible AHD vehicle monitors and camera monitor systems.
Is this camera suitable for forklifts?
Yes. It can be used on forklifts or industrial vehicles where rear or side visibility support is needed.
Can Xinvisual recommend a complete camera system?
Yes. Xinvisual can recommend a camera, monitor, cable and connector combination based on the vehicle type and installation requirements.
