7″ Radar Camera Reversing System 1080P

    The Radar Camera Reversing System combines a 7-inch HD monitor, 1080P camera and 24 GHz rear radar into one professional parking safety solution. It detects obstacles up to 6 m behind the vehicle, shows distance with green / yellow / red zones, and warns drivers with visual and audible alarms. The system records up to 4 video channels to an SD card and supports DC 12–36 V vehicles such as trucks, vans, buses and RVs.

    Send Inquiry
    Category:

      The  Vehicle Reverse Radar Monitoring System is designed for fleets that need both accurate distance sensing and clear HD video when reversing.
      A built-in 24 GHz FMCW radar module tracks moving and stationary objects behind the vehicle, while the 1080P camera with 7 IR LEDs provides a bright image on the 7″ 1024×600 monitor – day or night.

      When an obstacle enters the detection area, the system displays three colored warning zones (green / yellow / red) on the screen and triggers two-level audible alarms, helping drivers reverse safely even in low-visibility conditions.

      Key Features & Benefits

      • Radar + Camera 2-in-1 System
        24 GHz rear radar and 1080P camera work together so drivers can both see and hear obstacles behind the vehicle.

      • Accurate Distance Detection (0–6 m)

        • Green zone: 6.0 – 4.5 m

        • Yellow zone: 4.5 – 2.0 m

        • Red zone: 2.0 – 0 m
          Visual color bars and audible beeps increase in intensity as objects get closer.

      • 7″ HD Monitor with 18 Split Modes
        1024×3(RGB)×600 resolution, 700 cd/m² brightness, 1000:1 contrast and support for up to 4 camera channels with various split-screen layouts.



      • Built-in 4-Channel Recorder
        Records each channel as an independent AVI file to an SD card (up to 256 GB). Unlocked files are automatically overwritten for loop recording.



      • Flexible Trigger & Mirror Settings
        Independent reversing lines, delay time and mirror/flip settings for CH1–CH4, so you can fine-tune each camera to the installation position.



      • Night Vision & Harsh-Environment Ready
        7 IR LEDs, 0.01 Lux minimum illumination and IP69K waterproof camera housing ensure reliable operation in rain, dust and darkness.



      • Wide Voltage & High Durability
        Works with DC 12–36 V, shock-resistant design, ABS + aluminum alloy housing – ideal for trucks, buses, construction vehicles and RVs.

      Typical Applications

      • Heavy trucks & trailers

      • Buses & coaches

      • Delivery vans & box trucks

      • Construction & mining equipment

      • Agricultural machinery

      • Motorhomes / RVs

      Technical Specifications

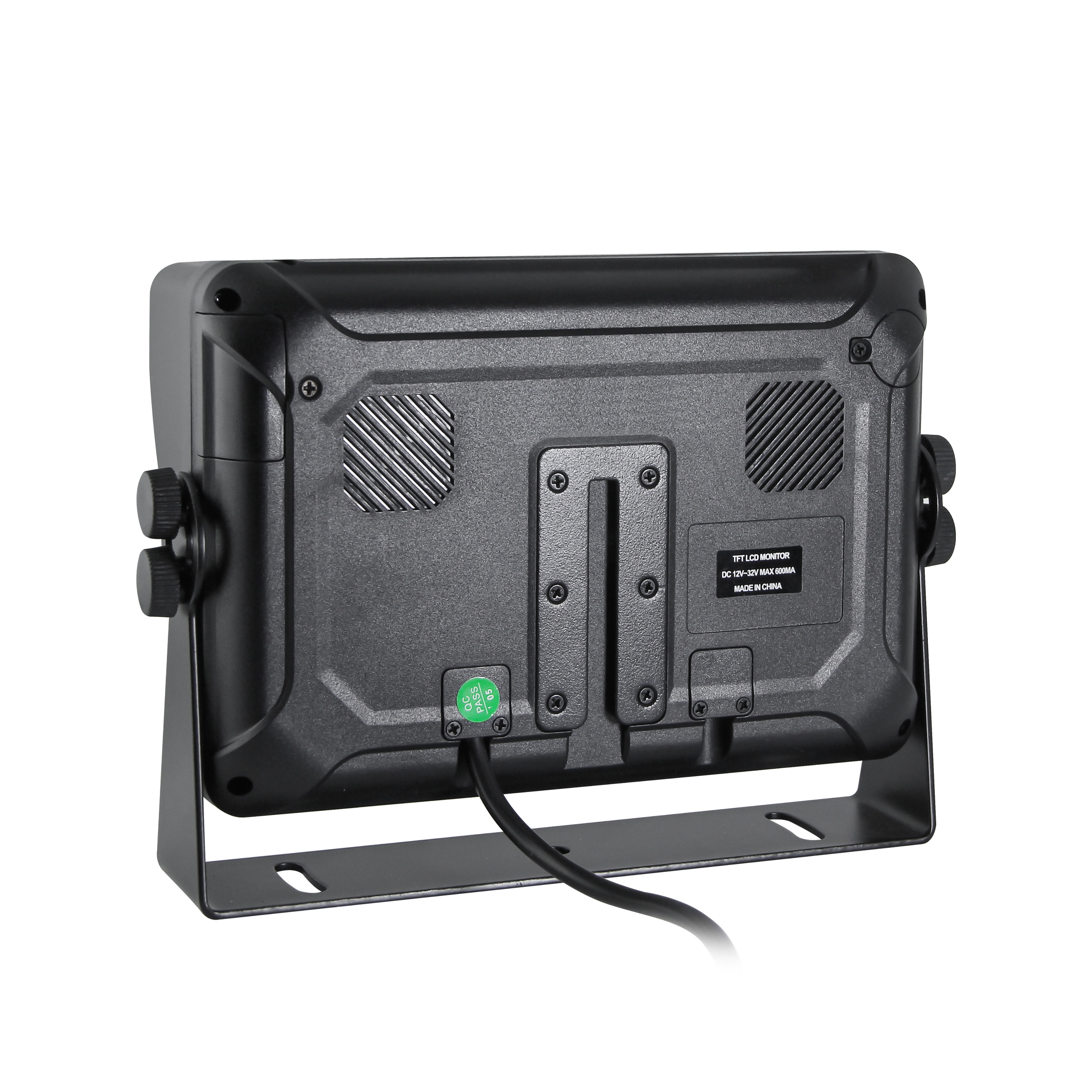

      Monitor Specifications

      • Screen size: 7″

      • Resolution: 1024×3(RGB)×600

      • Brightness: 700 cd/m²

      • Contrast: 1000:1

      • Video system: PAL / NTSC

      • Video input: 4 channels, supports 18 split-screen display modes

      • Recording: 4-channel input recording, each channel stored as a separate file

      • Storage: SD card, up to 256 GB, AVI format, loop recording (unlocked files overwritten)

      • Operation: Remote control + front panel keys

      • Operating voltage: DC 12–36 V

      • Operating temperature: −20 °C ~ +70 °C, RH ≤ 95%

      • Storage temperature: −30 °C ~ +80 °C, RH ≤ 95%

      • Installation: U-shaped bracket or desktop mounting

      • Housing material: ABS plastic

      • Functions:

        • Reversing guide line ON/OFF & delay (CH1–CH4)

        • Independent image adjustment per channel

        • Automatic brightness adjustment

        • Blue-screen / black-screen options

        • Mirror / flip per channel

        • Multi-language OSD (Chinese / English)

      Radar Camera Specifications

      • Video system: PAL / NTSC

      • Frame rate: 25 / 30 FPS

      • Resolution: 1080P (1920 × 1080)

      • Pixel size: 2.8 μm × 2.8 μm

      • Minimum illumination: 0.01 Lux (0 Lux with IR)

      • Dynamic range: 81 dB

      • Gamma: 0.45

      • Video output: 1.0 Vp-p, 75 Ω

      • Electronic shutter: 1/30 (1/25) ~ 1/50,000 s

      • Synchronization: Internal

      • Operating frequency: 24.00–24.25 GHz (FMCW)

      • Maximum scanning bandwidth: 0.24–0.25 GHz

      • Refresh period: 50 ms

      • Detection distance: 0–6 m

      • Range resolution: 0.77 m

      • Distance accuracy: 0.15–0.3 m

      • Antenna beam angle: Horizontal 140°, vertical 70° ±5°

      • Operating voltage: DC 12–36 V

      • Operating temperature: −41 °C ~ +80 °C, RH ≤ 95%

      • Storage temperature: −45 °C ~ +85 °C, RH ≤ 95%

      • Waterproof rating: IP69K

      • Housing material: ABS + aluminum alloy

      • Night vision: 7 infrared LEDs

      • Special functions:

        • Radar detection and alarm for moving / stationary objects

        • Three-level visual zone (green / yellow / red)

        • Two-level audible alarm

        • Shock-resistant design
