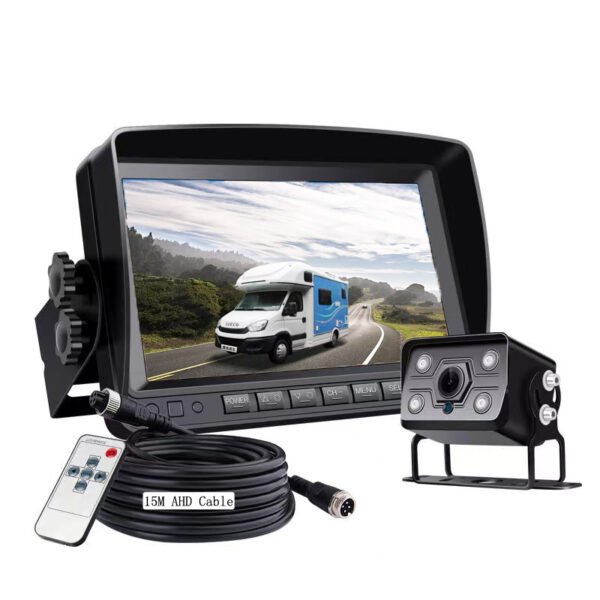

7 inch IPS Monitor
The 7-inch backup camera kit is a complete rear-view solution designed to improve safety and visibility for commercial vehicles, trucks, buses, agricultural machinery, and construction equipment.
Featuring a high-resolution 7-inch LCD monitor and a weatherproof AHD camera, this system delivers sharp images in various lighting conditions, ensuring confident reversing and maneuvering in challenging environments.
Built for professional use, this kit combines rugged durability, easy installation, and crystal-clear imaging—making it ideal for demanding industries.
✅ Key Features
-
HD Image Quality
Crisp and detailed visuals for safe reversing in all conditions. -
7-Inch LCD Monitor
Large display for improved viewing and reduced blind spots. -
Wide Viewing Angle
Expansive coverage to monitor surroundings more effectively. -
Night Vision Capability
Clear imaging in low-light or nighttime conditions. -
Waterproof & Vibration-Resistant Camera
Built to withstand rain, dust, and rough terrain. -
Easy Installation
Plug-and-play design with compatible connectors for quick setup.
⚙️ Technical Specifications
Screen Ratio: 16:9
Back Light Luminance: IPS screen , 600cd/stere
Resolution: 1024*RGB[3]*600
Compatible system: NTSC & PAL (automatically)
OSD control: Brightness, Contrast, Saturation,
Language (English, Simplify Chinese)
View angle: Whole View
Image reversion: UP/Down and Left/Right
Power requirement: DC 12-36V
Power consumption: 5W
Storage temperature: -30℃ to 80℃
Working temperature: -20℃ to 70℃
AV Inputs: 2 channels video input, single image display
Number of Trigger and display: 2 triggers
Optional functions: 4 PIN connector
Other features: OSD menu, Remoter control, Sunshade design around
Accessories: User manual, Bracket, Hexagon wrench,Hexagon screws,sunshade
RV Camera
SPEC: Model No:XST-C1608
Image sensor: 1/3 inch CMOS
Resolution: 1920*1080 Pixels (2MP)
Minimum illumination:0 Lux[IR ON]
CDS night version change: Change to black and
white image automatically in the night
Viewing Angle: 127 degree[H] 170 degree[D]
Image: Mirror or Normal optional
Appearance and Application: outside hanging design;
Suitable for bus,trucks and Industrial vehicles etc.
System: PAL/NTSC optional
Waterproof Level: IP69K
Shockproof Level: 4G (Aluminium alloy case)
Power Requirements: DC 12V
Power Consumption: <3W
Maximum current: <250mA
Connector: 4PIN or RCA optional
Working Temperature: -20℃ to 70℃
Storage Temperature: -30℃ to 80℃
🚚 Applications
-
Commercial trucks and trailers
-
City buses and coaches
-
Agricultural tractors and harvesters
-
Construction equipment
-
Delivery vans and logistics fleets
