Key Features:
-
High-Definition Video: Capture clear images with 1920×1080 resolution.
-
Wide 95° Viewing Angle: Minimize blind spots and enhance operational safety.
-
IP69K Waterproof Rating: Ensures durability in harsh conditions.
-
Night Vision: Equipped with 2 LED lights for visibility in low-light environments.
-
Wireless Transmission: Reliable 2.4GHz frequency with up to 500m open-field range.
-
Easy Installation: Magnetic mount allows for quick and secure setup.
Ideal For:
-
Warehouse Operations: Improve maneuverability and reduce accidents.
-
Logistics and Distribution Centers: Enhance loading and unloading efficiency.
-
Industrial Facilities: Monitor equipment and ensure worker safety.

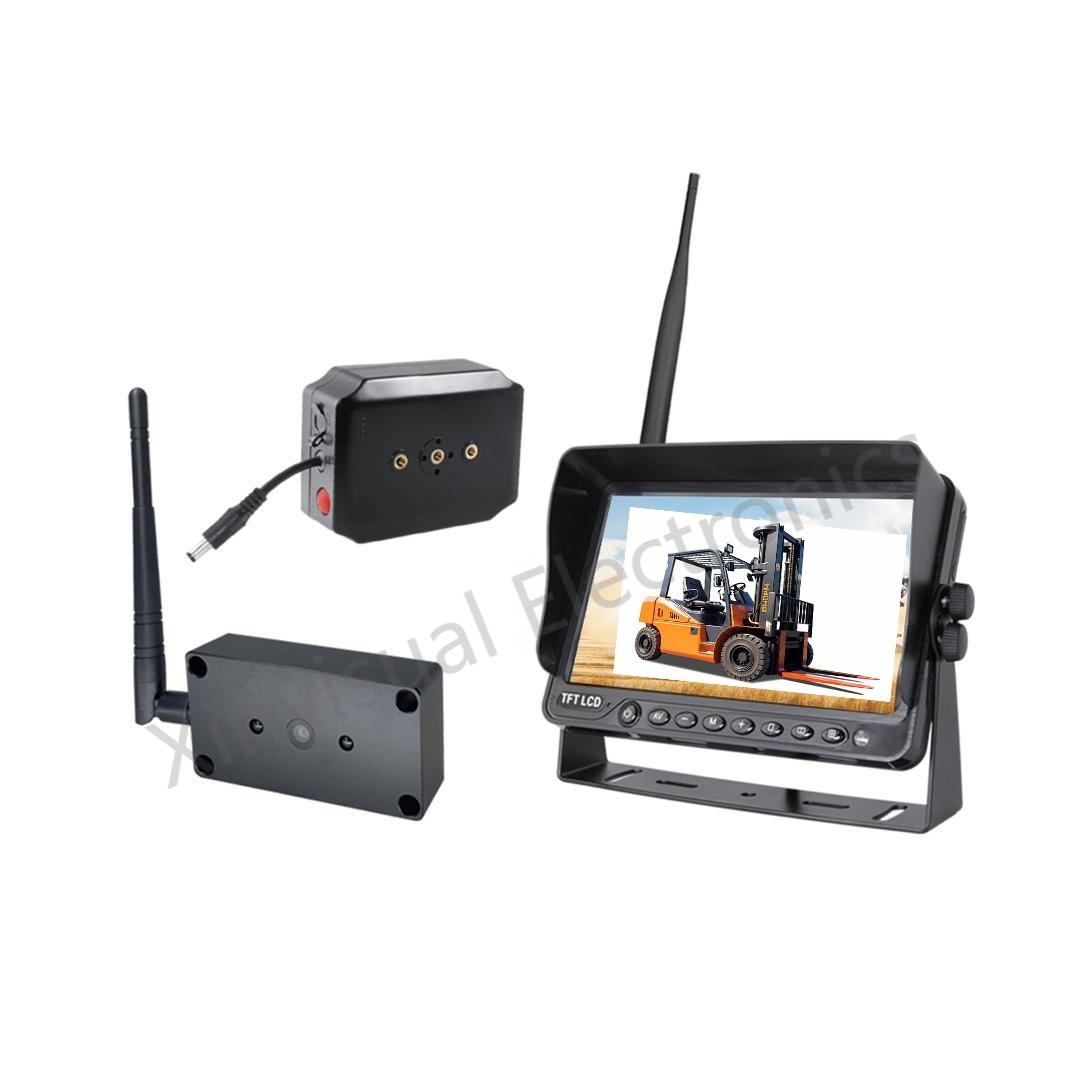

1080P Wireless Forklift Camera Specifications |
|
| Sensor | 1/2.7 CMOS SC2235 |
| Pixel | 1920*1080 |
| Operating frequency rang | 2400~2483MHZ |
| Antenna input imdependance | 50Ω |
| Transit power | 23dBm±1dBm |
| RF bandwidth | 1HMHz |
| Modulation method | 16QAM/QPSK/BPSK |
| Spreading method | FHSS(adaptive frequency hopping) |
| Receiver sensitivity | -81dBm(Typ.) @12MHz,16QAM BER<1E-3 -86dBm(Typ.) @12MHz QPSK BER<1E-3 |
| RF transmission rate | Richwave 3MHz/6MHz/12MHz BER<1E-3（Optional） |
| Hopping channel | 125 |
| CRC check Bits | 16 |
| Transmission distance | Open field distance 500M |
| Latency | 180ms Max |
| Resolution | HD1280*704（1T、2T） VGA640*480（4T） |
| Audio codec | 16 Bit Sigma Delta ADC & 10 Bit R2R DAC |
| Video codec | H.264 BP/MP/HP Level 4.1 |
| Video frame rate | 20FPS |
| Horizontal angle | 95 degree |
| Night vision distance | More than 15m |
| Features | Shockproof, 2 LED night vision lights |
| Waterproof | Ip69 |
| Operating current | DC10V-48V(12V/200MA) |
| Operating temperature | -20℃ —+70℃ 85%RH |
| Storage temperature | -40℃ —+80℃ 85%RH |
1080P Wireless DVR Monitor Specification |
|
| Screen Size | 7 inch |
| Screen Resolution | 1024RGB(H)*600(V) |
| Screen Backlight Brightness | 450cd/㎡ |
| Screen Contrast Ratio | 500:1 |
| Operating Frequency Range | 2400~2483MHZ |
| Antenna Input Impedance | 50Ω |
| Transmit Power | 24±1dBm@MaximumPower Setting |
| RF Bandwidth | 1HMHz |
| Modulation Method | 16QAM/QPSK/BPSK |
| Spread Spectrum Method | FHSS(adaptive frequency hopping) |
| Total Number of Frequency Hopping Channels | 125 |
| CRC Check Digit Number | 16 |
| Receiving Sensitivity | -78dBm(Typ.)@12MHz,16QAM BER<1E-3 -86dBm(Typ.)@12MHz QPSK BER<1E-3 |
| RF Transmission Rate | 4MHz BER<1E-3 |
| Transmission Distance | Open space 500M |
| Menu Display | Multilingual menus, graphic operation menus are quick and convenient |
| Audio Codec | 16 Bit Sigma Delta ADC & 10 Bit R2R DAC |
| Video Codec | H.264 BP/MP/HP Level 4.1 |
| Video Frame Rate | 20FPS |
| Image Storage Format | MP4 |
| Supported Card Memory | Supports SD cards up to 128GB |
| Audio | Can receive and play sounds in real-time, as well as record and playback sounds |
| Operation Mode | Remote control operation / Panel button operation |
| Operating Voltage Current | DC10V(420MA)~48V(100MA) |
| Operating temperature | -20℃ —+70℃ 85%RH |
| Storage Temperature |
-40℃ —+80℃ 85%RH |
